Silos Wall Flow-Assisting Blockage Removal Device

This silo wall flow-assisting unblock device delivers strong torque to loosen sticky materials on silo inner walls, effectively solve arching, bridging and hanging wall blockage issues for various bulk material storage bins.

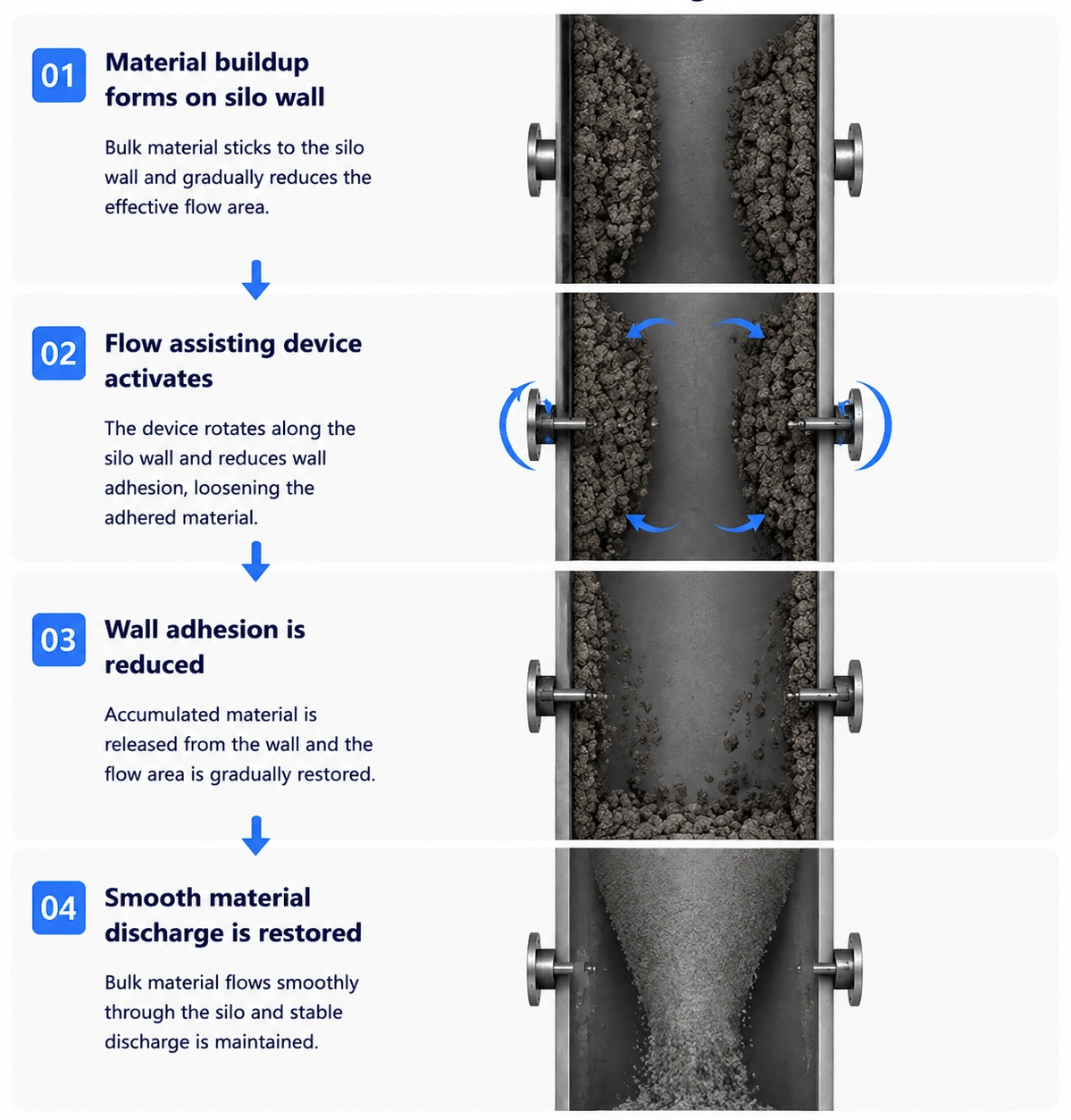

Working Principle

The high-torque power unit drives the eccentric vibration mechanism to generate continuous mechanical excitation force, which acts on the silo wall within the effective cleaning area. It continuously loosens sticky and compacted materials, destroys the material arch structure, eliminates dead material zones, and realizes forced uniform flow of bulk materials. The equipment runs stably with low frequency and high torque, no damage to the silo body, and no material splash.

Core Advantages

• Strong Anti-Blocking Capacity — Equipped with 4400N·m super high torque, thoroughly break material arching and wall hanging for long-term stable discharging.
• Wide Adaptability — Perfect for various rectangular silos and rectangular coal drop pipes, suitable for wet coal, sludge, coal slime, mineral powder and other sticky materials.
• Large Effective Coverage — Single equipment cleaning area ranges from 0.28㎡ to 1.6㎡, covering most blockage-prone areas of silo walls.
• Safe & Durable — 380V industrial standard voltage, stable power output, low failure rate, long service life, no damage to silo structure.
• Automatic Operation — Realize continuous unmanned flow assistance, reduce manual maintenance and avoid safety risks of manual blockage removal.
• Simple Installation & Low Energy Consumption — Compact structure, easy external installation, no need to cut or modify the silo body, low operating power.

Application Scope

Widely used in thermal power plants, coal mines, coking plants, cement plants and metallurgical industries, especially suitable for all kinds of rectangular material silos and rectangular coal drop pipes. It solves blockage and unsmooth blanking of coal powder, wet coal, coal slime, sludge, limestone powder and other bulk sticky materials.

Technical Parameters

Construction Cases

For each project case, we deliver well‑tailored equipment solutions and complete supporting services with our professional industry experience.
